Real shot of inner wall of metal tubing It can shoot images and videos with clear image quality to help users conduct comprehensive and detailed diagnosis and analysis.
| Display size | 5-inch HD display |
| Monitor resolution | 800*480 |
| Image zoom | Support real-time 4x zoom； up to 5x zoom during image playback |
| LED brightness level | Adjustable from 0 to 9 levels |
| Auxiliary measurement | Function Crosshair reference line |
| File format | Images are stored in JPEG/BMP format, videos in MP4 format |
| Image rotation | 0°/90°/180°/270° rotation |
| Screen backlight brightness | 700nit high-brightness sunlight screen |

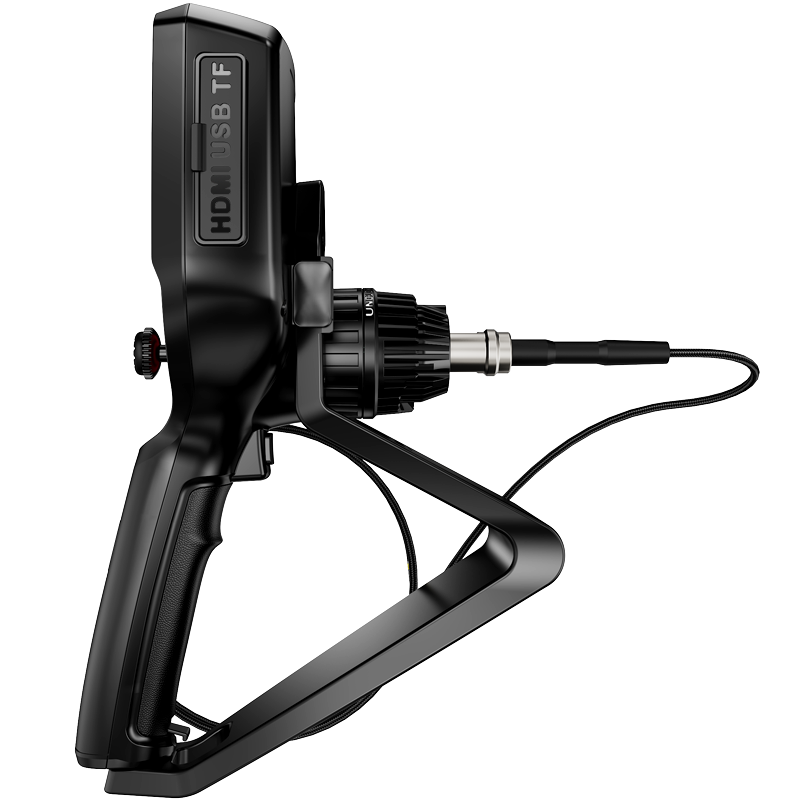

| Output port | Mini HDMI |

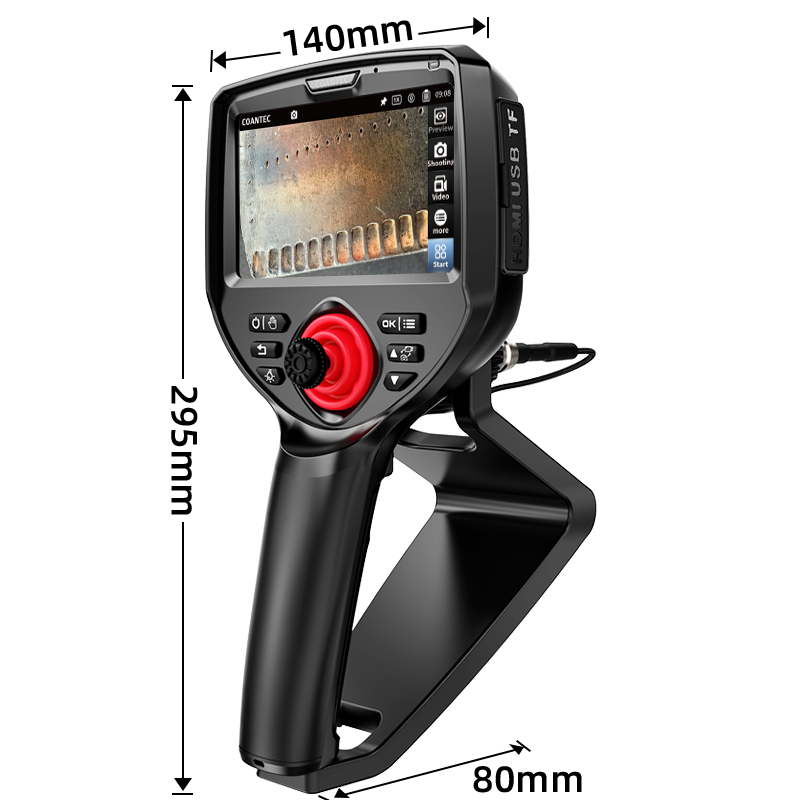

| Host size | 295 mm x 140 mm x 80 mm |
| Packaging size | 425mm x 345mm x 188mm |

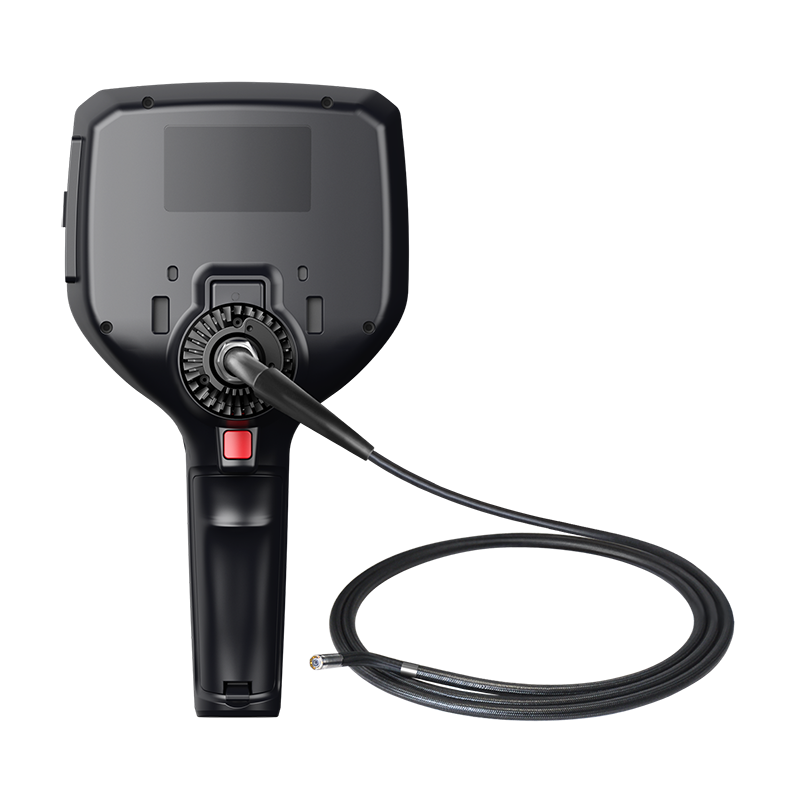

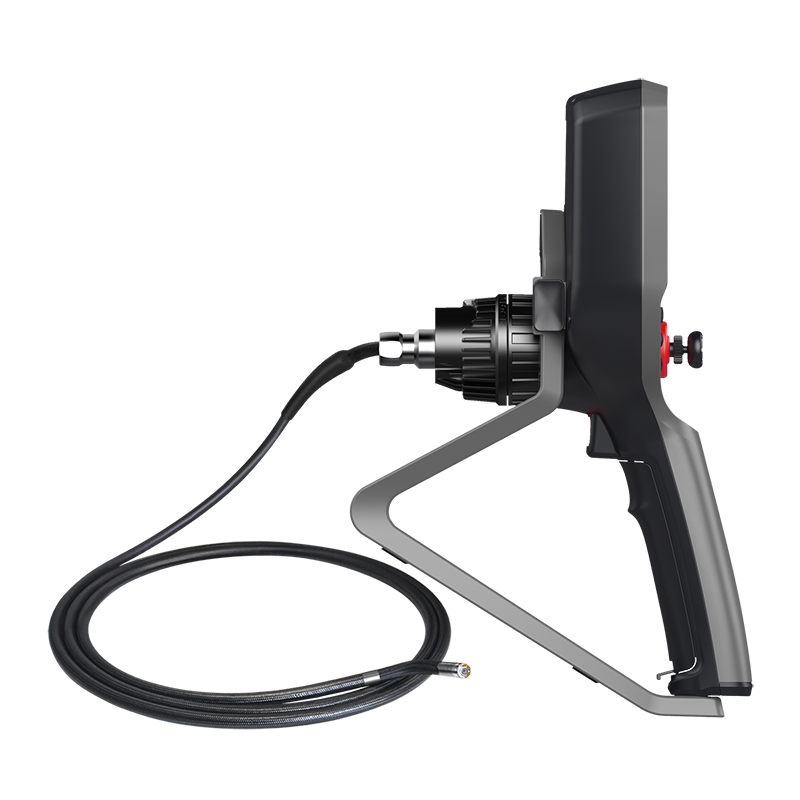

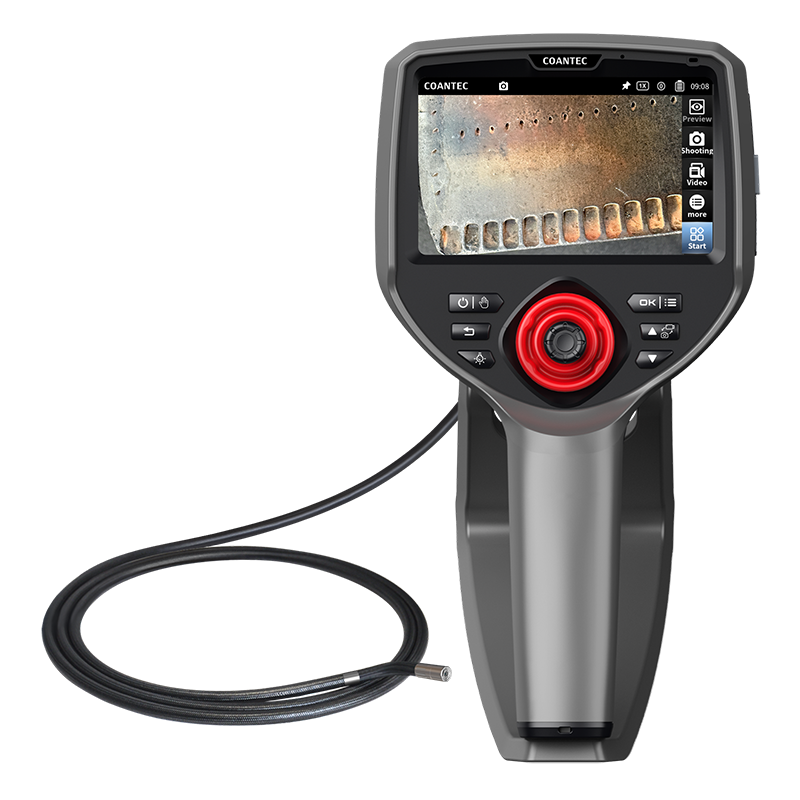

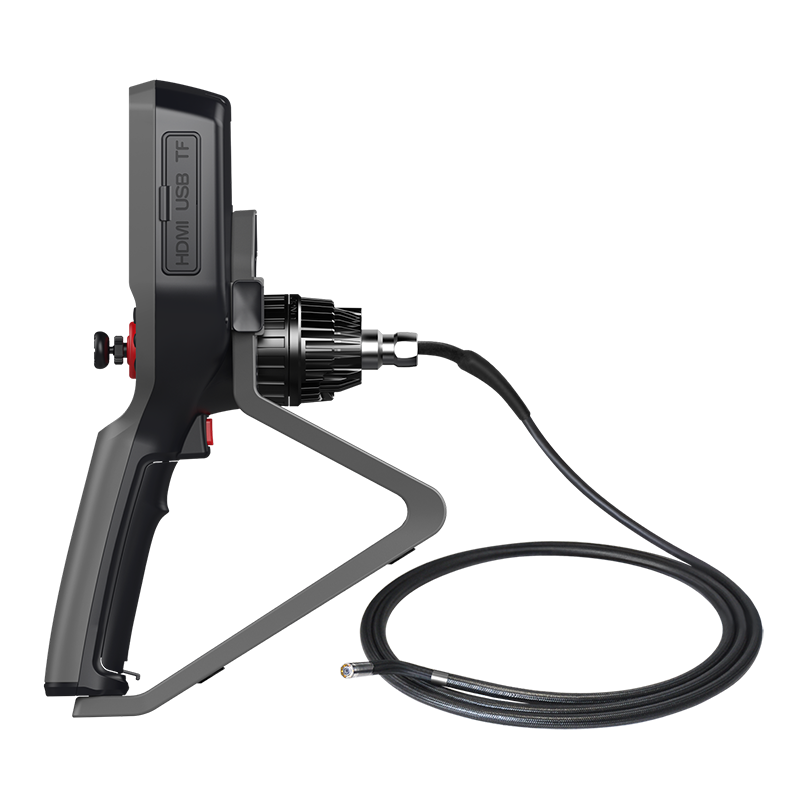

The M40 Series is an upgraded product based on the C40. It is a high-definition, modular handheld industrialborescope. Building on its portable design, it features alarger industrial touchscreen and a more versatilemodular probe and lens system, enhancing inspectionadaptability and operational efficiency. It is suitable forvisual inspection and diagnosis of complex internalstructures.

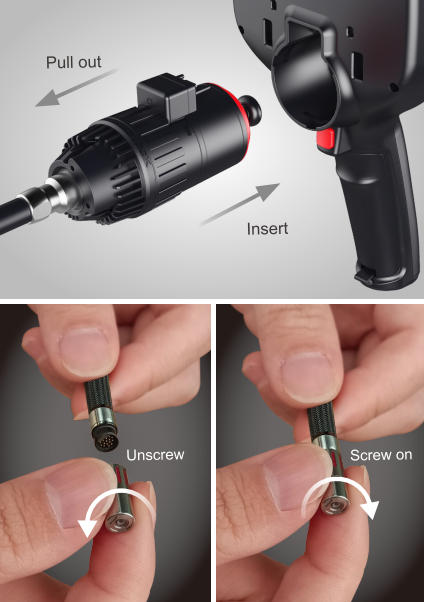

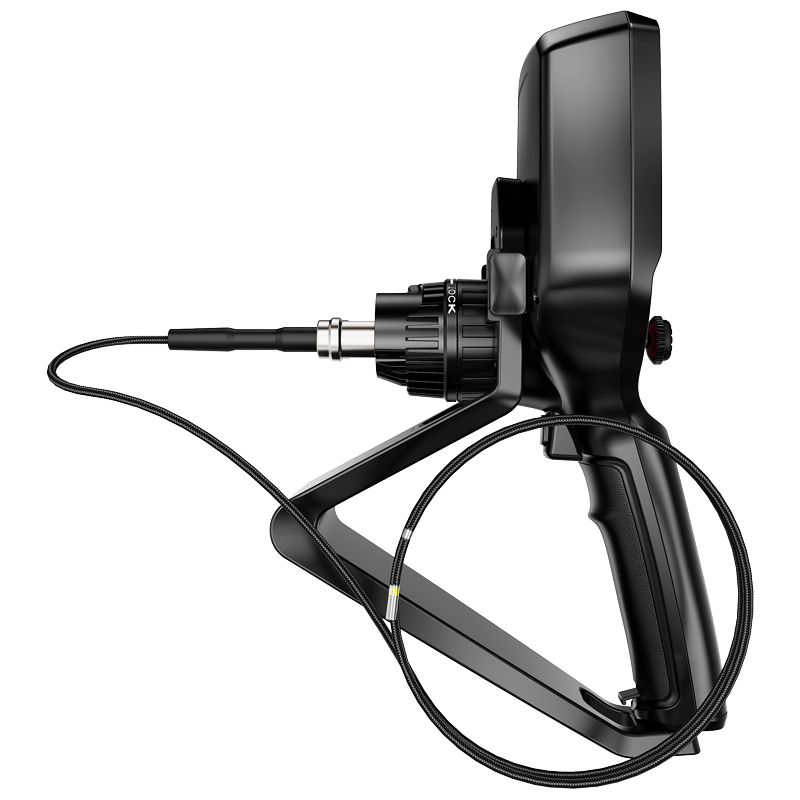

This industrial borescope can be quickly adapted to diverse inspection environments by simply swapping its interchangeable borescope tube.

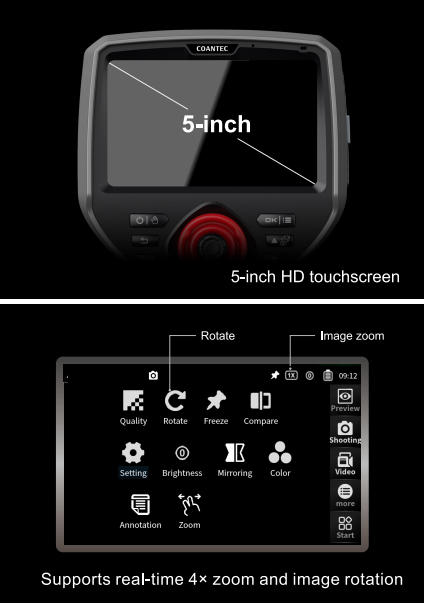

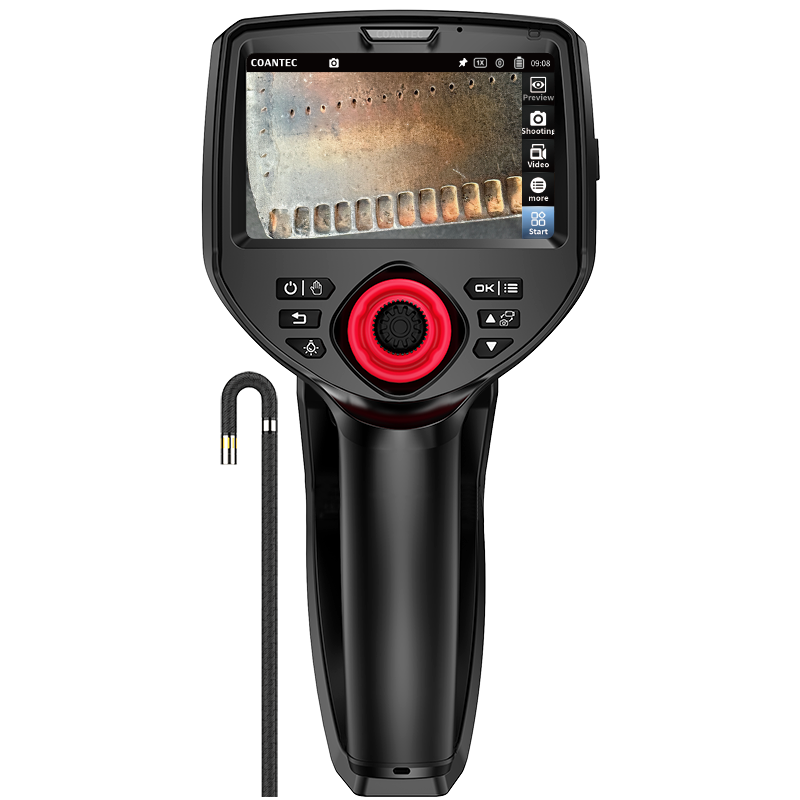

5-inch touchscreen (800x480 resolution) Provides clear image display for direct on-siteobservation and evaluation. Supports real-time 4x zoom and image rotationAllows instant magnification of details and multi-angleviewing from 0° to 270°, meeting various inspectionperspective requirements. Photo capture, video recording, and real-timeannotation Supports storage in JPEG / BMP / MP4 formats. Timestamps and annotations can be added to images andvideos for documentation and report generation. More than ten system languages availableMeets the needs of multi-region and multilingualoperating environments.

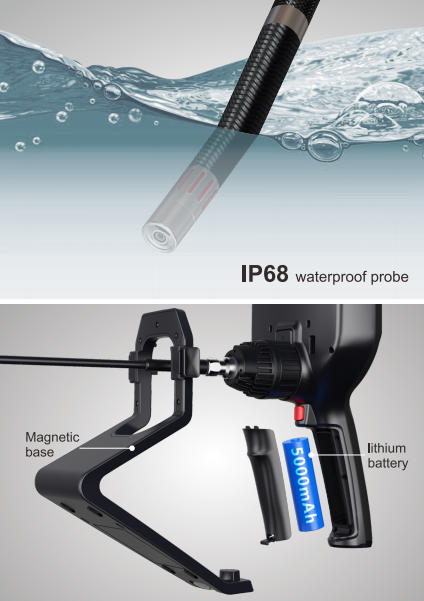

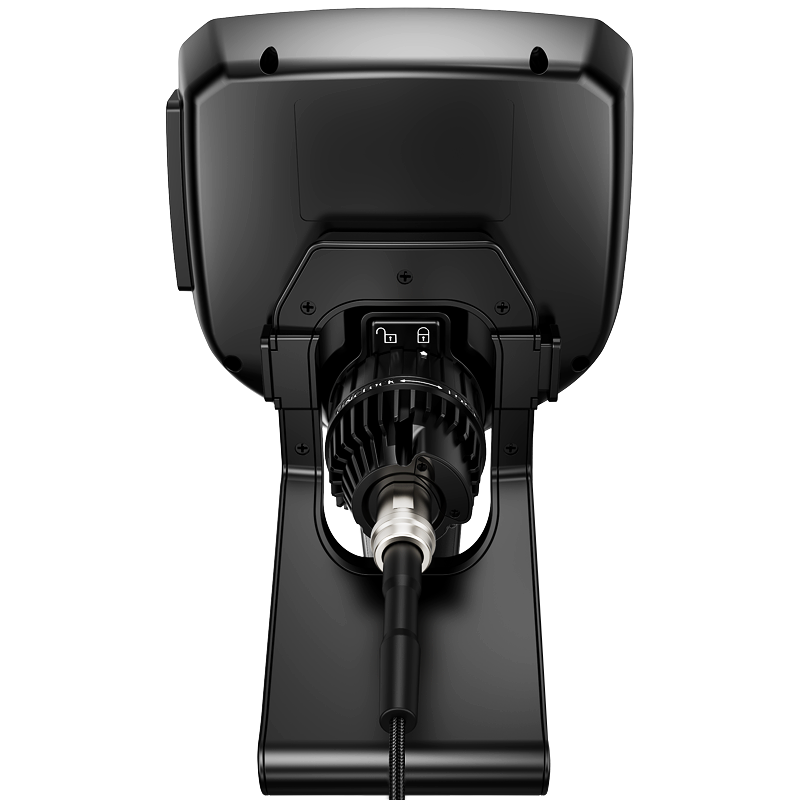

IP68 waterproof probe Suitable for harsh conditions such as moisture, oilcontamination, and underwater environments. · Quick-release high-strength magnetic baseProvides stable support and enables fast adjustment ofinspection angles. High-strength aluminum alloy quick-release heat-dissipation probe connector Heat dissipation efficiency increased by three times, ensuringstable performance during extended operation.· Main unit weight: 0.89kg (including base and battery)Lightweight and portable, suitable for prolonged handheld use.Built-in replaceable 5000mAh lithium batteryApproximately 3.5 hours of battery life, meeting continuous on-site inspection demands.
| Host | |||||||
| Display Dimension | 5-inch HD touchscreen | ||||||
| Display Resolution | 800 × 480 | ||||||
| Image Zoom | Supports real-time 4× zoom; up to 5× zoom during image playback | ||||||
| LED Brightness Levels | Adjustable from 0 to 9 levels | ||||||
| Auxiliary Measurement | Function Crosshair reference line | ||||||
| Photo/Video | Supports photo capture and video recording | ||||||
| Document Format | Images stored in JPEG / BMP format; videos in MP4 format | ||||||
| Image Rotation | 0° / 90° / 180° / 270° rotation | ||||||
| Image Preview | List-view preview; supports full-screen viewing, file deletion, time watermarking, etc. | ||||||
| Screen Backlight Brightness | 1000nit high-brightness sunlight screen | ||||||
| Output Port | Mini HDMI | ||||||
| Menu Language | Simplified Chinese, Traditional Chinese, English, Japanese, Korean, French, German, Portuguese, Spanish, Russian, Italian, Dutch, etc, more than ten languages | ||||||
| Host Dimension | 295 mm × 140 mm × 80 mm | ||||||
| Package Dimension | 425mm × 345mm × 188mm | ||||||
| Host Weight | 0.89 kg (including base and battery) | ||||||
| Tube | High-strength aluminum alloy quick-release heat-dissipation replaceable structure | ||||||
| *Probe Diameter(±0.1mm) | Φ0.95mm | Φ1.2/1.6mm | Φ1.8/2.0mm | Φ2.8mm | Φ3.9mm | Φ4.8mm | Φ6.0mm |
| *Camera Pixels | 160000 | 1000000 | 1000000 2000000 | ||||
| View Direction | Forward | Forward/Side | |||||
| *Depth of Field | 3-50mm | 5-50mm | 5-100mm | 8-80mm | 8-80mm/15-∞ | ||
| *Field of View | 120° | 120°/120° | 120°/70° | ||||
| *Tube Length | 1-1.5m | 1-2m | 1-3m | 1-5m | 1-3m | 1-10m | |
| Lighting Mode | Fiber+backend LED | Front LED | Front LED / Fiber+backend LED | ||||
| Joystick Control | Non-articulation | Non-articulation / Two-way | 360° all-way articulation | ||||
| *Probe Bending Angle | / | Tube length≤3m, 150°; Tube length 3m to 5m, 120°; Tube length≥7m, 90° | |||||
| Tube Material | Alloy spring tube | Tungsten braided wear-resistant tube | |||||
| Probe Material | Hard alloy protective shell | ||||||
| Joystick Control | Mechanical control, The rocker comes with a Dnison tight adjustment | ||||||
| Compatibility | Interchangeable Tube | ||||||
| Protective Device | Buffer for connecting host and wear-resistant tube | ||||||
| Probe Waterproof Level | / | IP68 | |||||

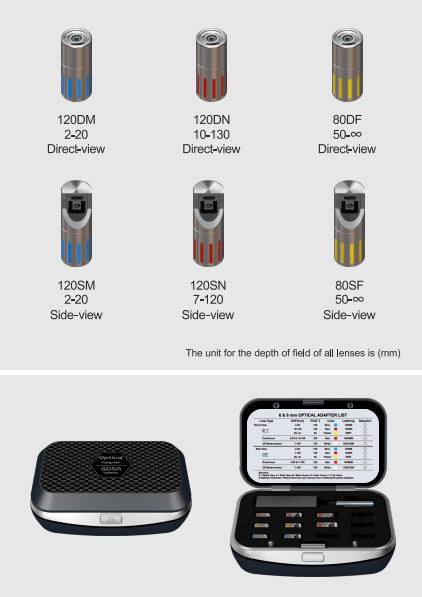

| Lens System | Interchangeable | ||||||
| Lens Model | Direct View | Side View | |||||
| Depth of Field (mm) | 2-20/10-130/50-∞ | 2-20/7-120/50-∞ | |||||
| Field of View (°) | 120/120/80 | 120/120/80 | |||||
| Power | |||||||
| Power Supply | Rechargeable lithium battery (with reverse battery protection.) | ||||||
| Battery | 3.7V, 5000mAh | ||||||
| System Operating Time | 4 hours | ||||||
| Operation Environment | |||||||
| System Operating Temperature | -10°C~50°C | ||||||
| Probe Operating Temperature | -20°C~85°C | ||||||
| Storage Temperature | -20°C~60°C | ||||||
| Relative Humidity | 15%~90% | ||||||
| Others | |||||||
| Base | Quick-release high-strength magnetic base | ||||||
| Configurations | |||||||
| Standard Configurations | M40 videoscope ×1, instrument case ×1, magnetic base ×1, rechargeable lithium battery ×1, charger ×1, card reader ×1, 8G TF card ×1, anti-fall hand strap ×1, user manual ×1, usage precautions ×1 | ||||||
| *For specific parameters (such as illumination, depth of field, pixel, field of view, working length, bending angle, etc.) and other requirements, please contact relevant personnel for confirmation. | |||||||
